AmbientSwitch
AmbientSwitch is a slide switch — a pill riding in a recessed stadium
track — with an optional LED indicator.
Interactive preview
Power
Record
Small
Large
Grounded counterpart

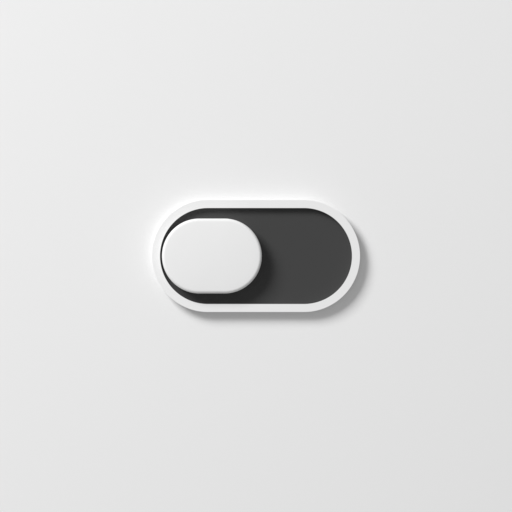

The switch is modeled on its 3D referent (ambient3d/components/switch.py):
a pill sliding in a stadium recess cut into the panel. The track is an
.amb-groove; the pill stands the referent's 2.6mm above the recess floor.
Props
| Prop | Type | Default | Notes |
|---|---|---|---|
value | boolean | - | Controlled state. |
defaultValue | boolean | false | Uncontrolled initial state. |
onChange | (on: boolean) => void | - | Called when toggled. |
size | "sm" | "md" | "lg" | "md" | Switch size variant. |
label | string | - | Optional visible label. |
led | boolean | string | - | true for default green, string for custom color. |
Also accepts standard button props (except native onChange).
Examples
Uncontrolled
<AmbientSwitch label="Power" defaultValue />
Controlled
const [enabled, setEnabled] = useState(false);
<AmbientSwitch value={enabled} onChange={setEnabled} label="Bypass" />
Custom LED color
<AmbientSwitch label="Record" led="#ef4444" defaultValue />
